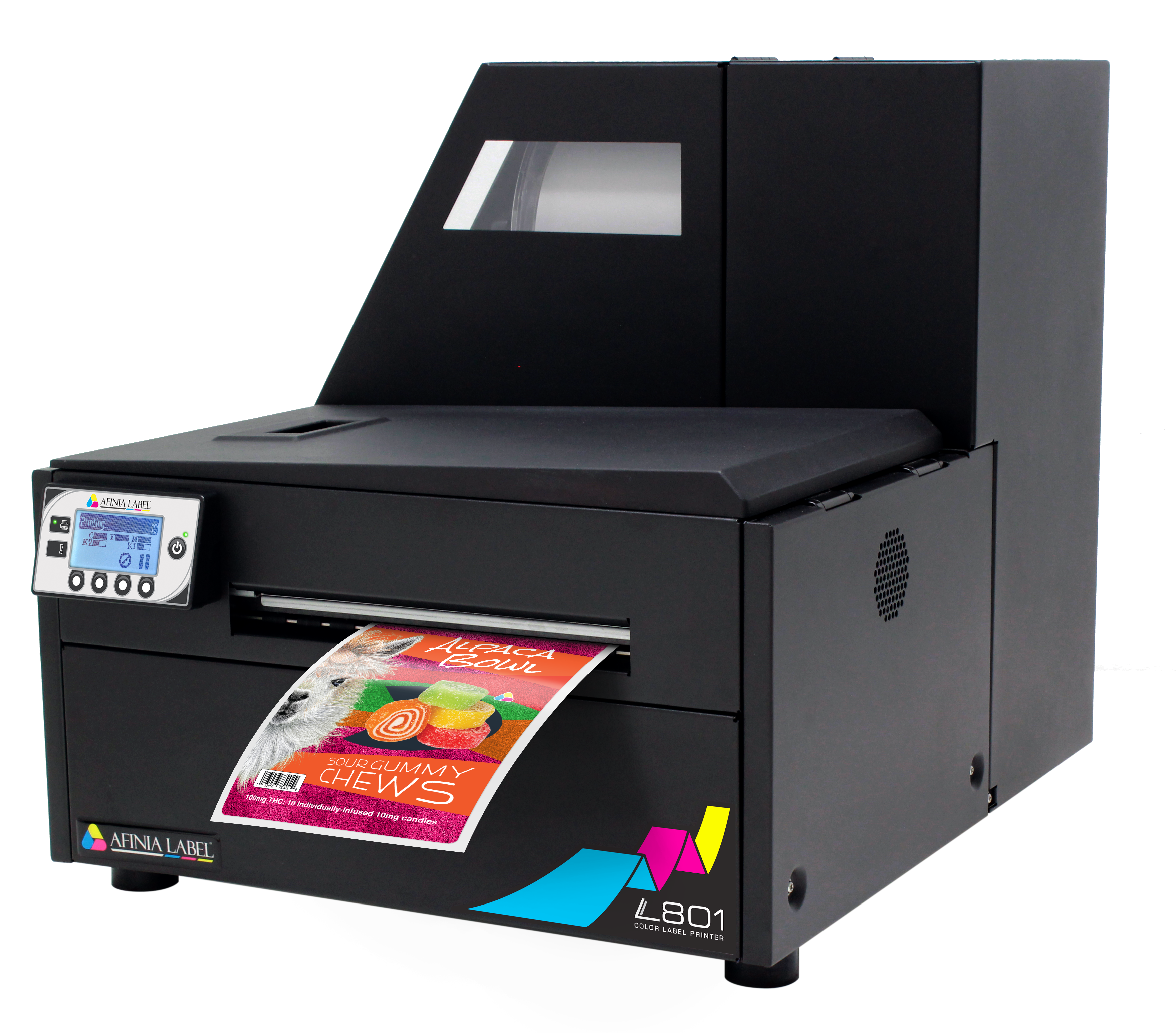

L801 Digital Color Label Printer

L801 Digital Color Label Printer - Powered by Memjet

Memjet Label Printer

The L801 Color Label Printer is a Memjet label printer that uses Memjet technology, allowing you to print high-impact, full-color output at up to 60 ft/min (18 m/min). Memjet’s stationary “waterfall” printhead technology allows paper to move quickly through the printer, while maintaining excellent print resolution.

High Quality & Resolution

Print at up to 1600 x 1600 dpi for vivid, eye-catching labels. By using CMYKK, the L801 offers exceptional color and rich blacks, giving you the ability to print with better contrast.

Low Cost of Ownership

Afinia Label printers allow you to save on consumables. The L801 holds 1.25 liters of ink to support large runs, and offers an industry-leading low ink cost. You can visit our online ink cost calculator to determine the estimated cost of your labels based on label size and percent ink coverage, or see how the L801 has a great return on investment.

L801 Brochure | [PDF]


Specifications

Printer

Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip)
Ink type: Dye
Print resolution: 1600 x 1600 dpi or 1600 x 800 dpi
Print speed: 6 inches (152 mm) per second or 12 inches (305 mm) per second
Print width: 8.77 inches (222.8 mm)
Media types: compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks

Media

Width: 2″–8.5″ (50.8 mm216 mm)
Thickness: Minimum 0.005″ (0.13 mm) Maximum 0.01″ (0.3 mm, including liner)
Core diameter: Requires 3″ (76.2 mm) cardboard core
Media sensors: Gap, continuous, black mark
Die-cut label gap: Minimum 0.125″ (3.0 mm) Maximum 0.3″ (8.0 mm)
Black mark size: (3 mm wide, 25.4 mm long on left)

General

Interfaces: TCP/IP (Manual IP configuration or DHCP)
Operating system: Windows 7 (32- and 64-bit) with Service Pack 1 • Windows Vista (32- and 64-bit) with Service Pack 2 • Windows XP (32- and 64-bit) with Service Pack 3
Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
Two-dimensional code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating temperature: 15°35° C (59°95°F) at RH 2080%
Storage temperature: -5°50° C (23°113°F) at RH up to 85%, non-condensing at 65°
Overall dimensions: 18.9″ (480mm) W, 19″ (485mm) D, 21.1″ (535mm) H
Weight: 83 lbs. (37.6kg)
Power consumption:
Rated voltage: AC 110V – 220V
Rated frequency: 50 – 60Hz
Acoustic noise:
EMI:
Safety Standards:
Warranty: One year
